ALU 20 Black 12x6 ft. Universal DIY Pedestrian Gate Kit - Double Swing - GAP 3/8" or 1/2"
ALU 20 Black 12x6 ft. Universal DIY Pedestrian Gate Kit - Double Swing - GAP 3/8" or 1/2"
Regular price
$2,688.90 USD
Regular price
Sale price
$2,688.90 USD
Unit price
per
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Care Instructions
Care Instructions
Description
The ALU 20 Black 12×6 ft. Universal DIY Pedestrian Gate Kit is a two-leaf horizontal aluminum gate system for customers who want the look of a fabricated architectural gate without field welding. The standard configuration uses the Universal DIY aluminum frame platform with 2-inch ALU20 horizontal slats, 6063-T6 aluminum and an AAMA 2604 architectural powder-coated finish. These existing product-page views show the Universal DIY frame concept, ALU20 horizontal profile, exterior finish and assembly details. Open any image for a larger view without leaving the page. The Universal DIY platform is intended to simplify assembly while keeping the gate visually clean. For this SKU, the important planning points are the real wall-to-wall opening, the two swing arcs, center alignment and the selected 3/8-inch or 1/2-inch ALU20 slat gap. This is the black Universal DIY pedestrian-gate configuration with two swing leaves, horizontal ALU20 slats and a selectable 3/8-inch or 1/2-inch gap. The current product content identifies pre-cut aluminum frame components, ALU20 horizontal slats, corner/assembly hardware, fasteners and instructions as the core DIY package. Exact hinge, latch and accessory contents should be confirmed for the ordered kit before installation. Two coordinated aluminum gate leaves create the 12-foot double-swing layout without requiring welded field fabrication. The gate is designed around the ALU20 horizontal slat family with the ordered 3/8-inch or 1/2-inch spacing. Corner and connecting components support square, repeatable assembly of both leaves. Fasteners are used to secure the frame and ALU20 infill according to the supplied gate-system instructions. The two leaves must be aligned to meet cleanly at the center, with the selected latch or lock condition planned before final adjustment. Use the supplied assembly guidance for frame squaring, slat placement, hinge-side alignment and final operation. The standard Universal DIY configuration is designed around structural mounting surfaces at both sides of the opening. Choose the latch or lock hardware for the actual project and verify its fit before completing the gate assembly. Do not assume posts, closers, automation equipment or every hardware accessory is included. Confirm the current package contents at ordering. At 12 feet wide and 6 feet high, this Universal DIY configuration creates a substantial two-leaf gate for wide residential or light-commercial openings where there is enough clear swing area. The horizontal ALU20 layout keeps the visual language modern, while the selectable gap lets the project choose between a tighter or slightly more open slat rhythm. Open any image to inspect the gate-system details in the built-in lightbox without leaving the product page. Use the ALU20 technical views to understand the horizontal profile and how the slat geometry relates to the Universal DIY gate frame. Final wall-to-wall dimensions, hinge placement, center meeting condition and hardware clearances should be confirmed for the actual ordered configuration. This is not the Contractor Line. The standard Universal DIY 12′ × 6′ kit is intended for manual wall-to-wall installation. Treat the side structures, hinge alignment, center meeting condition and lock/latch selection as part of the gate system. Verify that both sides of the opening provide suitable structural mounting surfaces. The Universal DIY system is intended to avoid welded field fabrication while still requiring solid attachment. The Universal DIY frame is not the motor-ready Heavy-Duty gate platform. For automation, specify the correct Contractor / HD system instead. Both leaves need clear travel. Confirm walls, landscaping, grade changes and traffic paths will not interfere with the swing. The leaves should meet evenly at the center with consistent reveal and the chosen latch, stop or lock condition aligned. Select the gap before assembly so both leaves maintain the same horizontal rhythm and privacy level. Confirm the selected lock or latch dimensions before final assembly rather than assuming every hardware set uses the same backset or clearance. The 12′ × 6′ format is best used where two manual swing leaves make sense, the opening has clear swing room and the side structures can support the Universal DIY mounting condition. Create a broad modern gate opening with a balanced two-leaf layout and horizontal aluminum infill. Use the wider format where equipment, bins, bikes or occasional larger access needs more clear width than a standard pedestrian gate. Coordinate the black horizontal gate with modern walls, fencing and landscape areas. For pool or code-regulated enclosures, use only project-compliant latch, height and self-closing hardware. A low-maintenance aluminum option for shared manual access points where a clean, repeatable appearance matters. Suitable where the opening, traffic pattern and mounting surfaces support a manual double-swing gate rather than automated vehicle control. Aluminum avoids iron-oxide rust and is well suited to environments where steel gate maintenance can become a recurring issue. The Universal DIY frame and ALU20 infill use aluminum, so they do not develop iron-oxide rust like steel and will not rot, swell or splinter like wood. The black architectural powder coat provides the exterior finish and surface protection. DIY does not mean guesswork. Measure first, assemble both leaves square, maintain the selected ALU20 gap and align the two gate leaves as one system. Measure width and height at multiple points and confirm both side mounting surfaces are plumb, solid and suitable for the gate hardware. Assemble the two Universal gate leaves on a protected flat surface and check diagonals so each frame remains square. Insert the ALU20 horizontal slats using the ordered 3/8-inch or 1/2-inch spacing. Keep the visual rhythm consistent across both leaves. Position the hinge hardware for the required swing direction and verify the structural wall attachment can carry the assembled leaves. Bring both leaves into plane, establish the center reveal and coordinate the latch, lock or stop condition. Cycle both leaves through the full manual swing, check clearances and fasteners, then clean the aluminum surfaces before regular use. The Universal DIY frame simplifies fabrication, but a wide two-leaf gate still depends on accurate site measurements and a correct manual hardware plan. Measure the finished opening at the top, middle and bottom and identify any out-of-plumb conditions before ordering. Choose the slat spacing before assembly so both leaves use the same privacy and visual rhythm. Plan the direction and full travel of both leaves based on available clearance, grade and traffic flow. Confirm the center closing condition, latch or lock body, handle clearance and hardware dimensions before final assembly. This Universal DIY kit is not the motor-ready Contractor Line. If the project needs an operator, select the correct HD gate system before purchasing. This SKU is Black. Confirm the current kit contents, any separately ordered hardware, alternate ALU20 finish options and nationwide shipping details before checkout. The existing Vimeo gate-system video is preserved, and the requested YouTube video is added beside it. Both load only after a visitor clicks the poster to reduce unnecessary page-load work. Common questions about wall-to-wall installation, double-swing planning, ALU20 spacing, package contents, finish and manual operation. Send the finished opening dimensions and photos if there is any doubt about wall condition, swing clearance, lock hardware or the correct gate line. If the project needs posts or automation, it should be reviewed as an HD / Contractor Line application rather than a Universal DIY installation. Before ordering, make sure the Universal DIY configuration matches the actual opening, mounting surfaces and manual hardware plan. For a standard Universal DIY installation, verify the wall-to-wall opening and manual swing geometry. If the site needs posts, concrete footings, motorization or another nonstandard support condition, send the project details so the correct HD system can be selected first.A black 12′ × 6′ double-swing aluminum gate built for wall-to-wall DIY installation.
Gate size12′ wide × 6′ high
OperationDouble swing · manual
Slat gap3/8″ or 1/2″
InstallationWall-to-wall only
Universal framing, horizontal ALU20 infill and a clean two-leaf gate layout.
Full-frame systemUniversal DIY frame

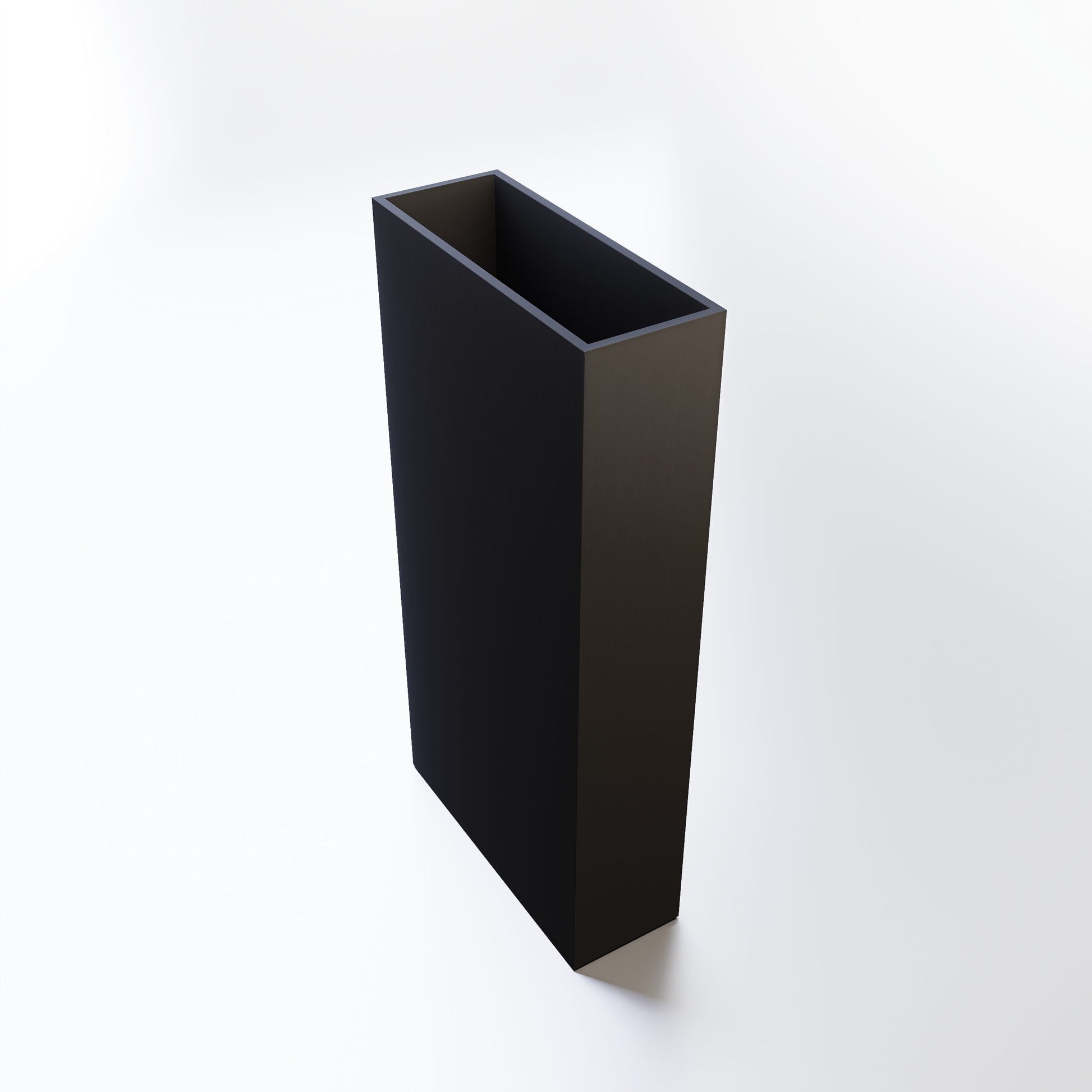

ALU20 horizontal slats2-inch profile
Architectural powder coatAAMA 2604 finish

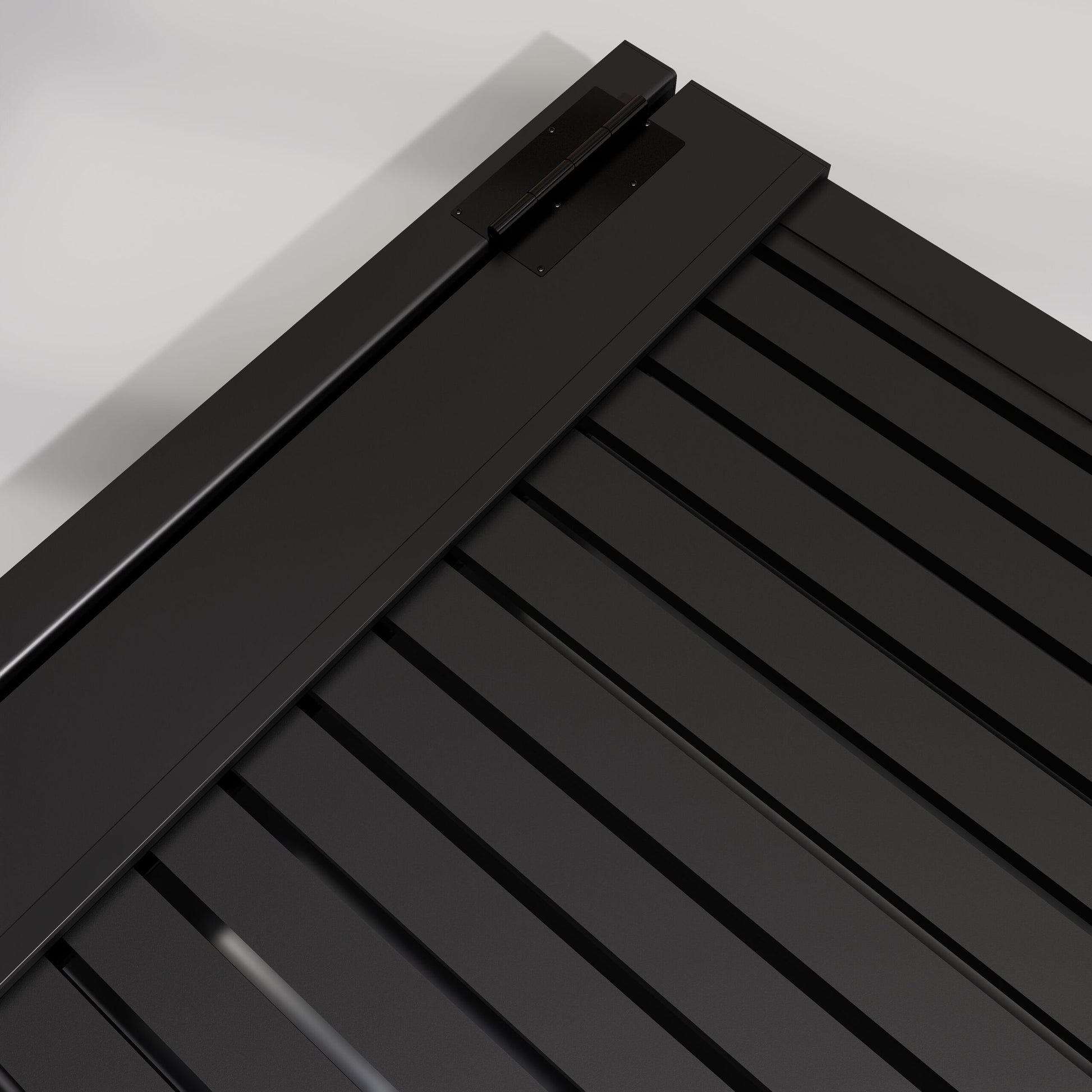

Hinge-side assemblyDouble-swing planning
Aluminum construction6063-T6 system
DIY-oriented assemblyNo field weldingA 12-foot opening split into two manual leaves, using a coordinated aluminum frame instead of welded field fabrication.

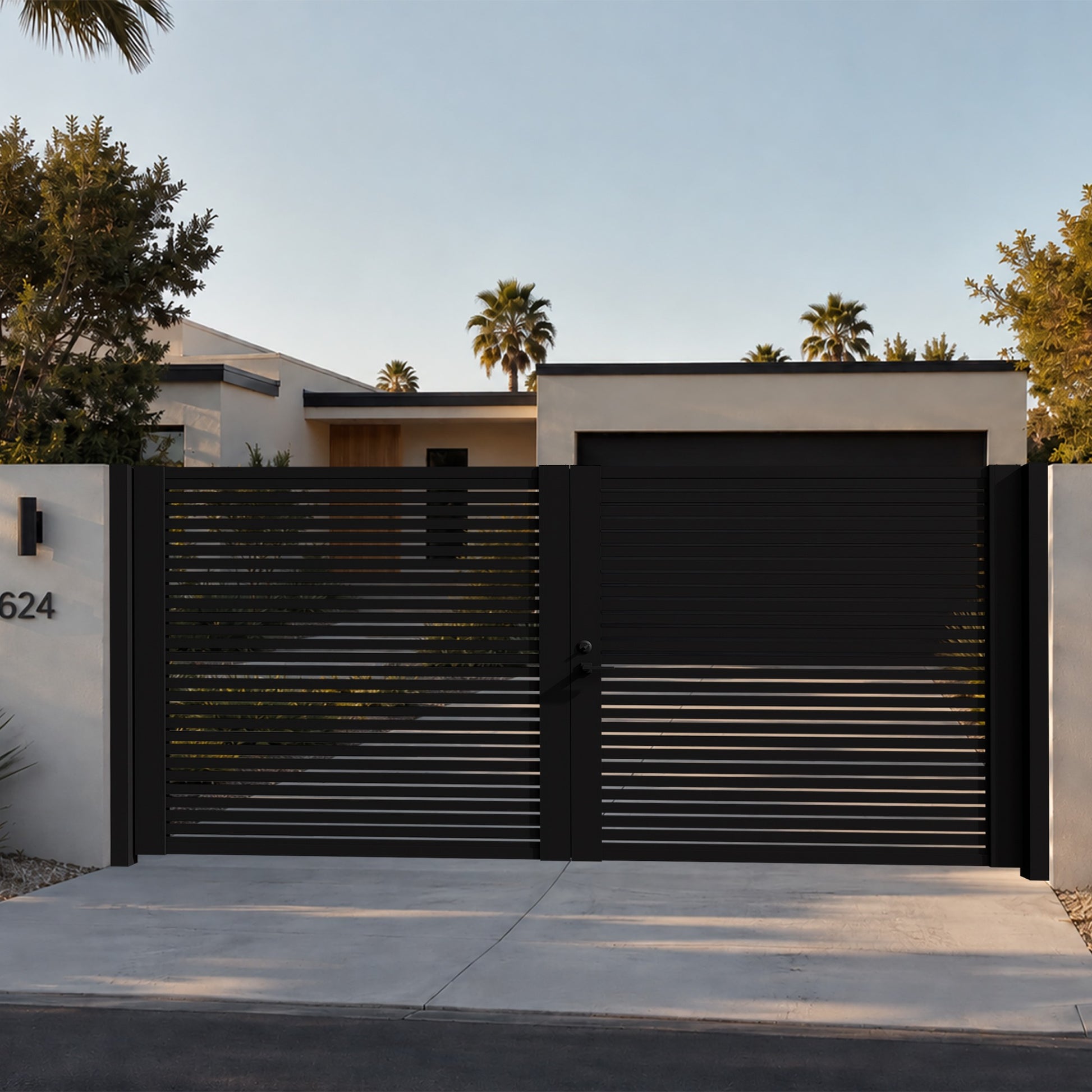

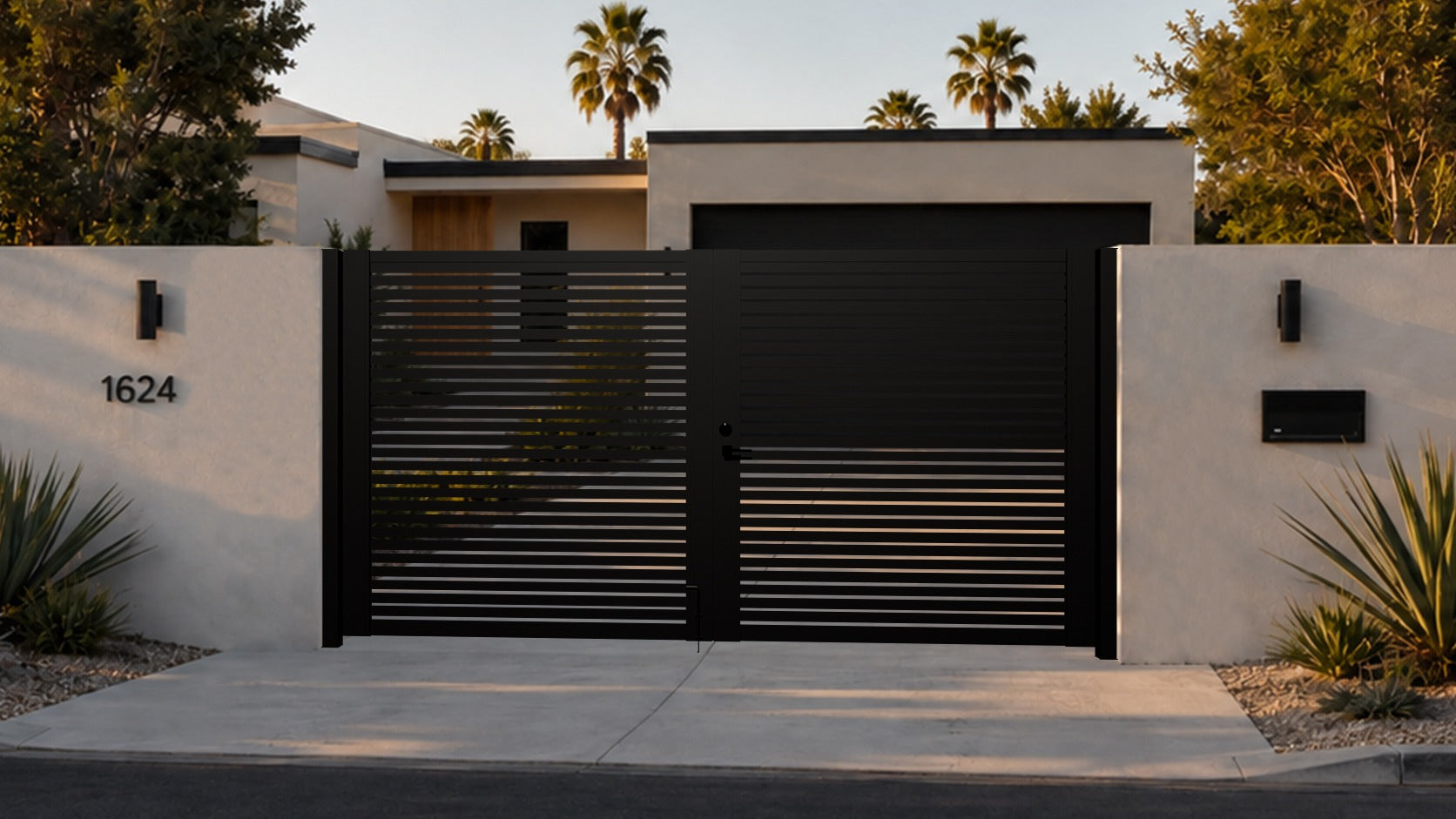

The ALU20 Black 12′ × 6′ Universal DIY double-swing gate at a glance.
The Universal DIY system is built around pre-engineered frame parts, ALU20 infill and assembly hardware.
Universal DIY gate frames
ALU20 horizontal slats
Frame assembly components
Assembly fasteners
Double-swing center condition
Installation instructions
Wall-to-wall mounting
Lock and latch planning
Accessory confirmation
Why this 12′ × 6′ configuration
A wide manual opening split into two manageable swing leaves.
Additional views already used on the ALU20 Universal DIY product page.
Gate system view 01Universal DIY system
Gate system view 02Universal DIY system
Gate system view 03Universal DIY system
Gate system view 04Universal DIY system
Gate system view 05Universal DIY systemALU20 profile geometry and Universal DIY frame planning.
ALU20 profile2D and 3D technical view
ALU20 constructionExploded profile renderUniversal gate referenceFrame and slat relationshipThe frame is pre-engineered, but the real opening, swing clearance and latch condition still have to be planned correctly.
Wall-to-wall only
Manual operation
Two swing arcs
Center meeting condition
3/8″ or 1/2″ slat gap
Lock hardware planning
A wide manual double-swing gate for residential and light-commercial openings with suitable wall-to-wall support.
Wide residential entries
Side-yard access
Courtyard and garden access
Multi-unit properties
Light-commercial manual access
Coastal and humid climates
6063-T6 aluminum with an AAMA 2604 architectural finish for long-term exterior use.
A six-step path from verified wall-to-wall opening to aligned double-swing operation.
Verify the opening
Lay out both frames
Install ALU20 slats
Set hinge-side hardware
Align the center meeting point
Test and finish
Confirm the opening, gap, swing geometry and hardware before the 12-foot double gate arrives.
Measure wall to wall
Select 3/8″ or 1/2″ gap
Confirm swing direction
Plan latch and lock hardware
Confirm manual operation
Confirm package, finish and delivery
See the Universal DIY gate system in motion.
Answers before you assemble the 12′ × 6′ ALU20 Universal DIY double gate.
What is the ALU20 Universal DIY 12′ × 6′ double-swing gate?
It is a black, horizontal aluminum gate kit configured as two manual swing leaves across a 12-foot-wide by 6-foot-high opening. The Universal DIY frame is designed around ALU20 slats and wall-to-wall installation.What slat gaps are available?
The current listing offers 3/8-inch or 1/2-inch spacing. The tighter option gives a denser horizontal rhythm, while the 1/2-inch option creates slightly more openness.Is this gate wall-to-wall or post mounted?
The standard Universal DIY configuration is wall-to-wall only. Do not plan the standard kit around posts set in concrete. A project that needs posts or a different support condition should be moved to the appropriate Heavy-Duty configuration.Can this Universal DIY gate be automated?
No. The Universal DIY frame is intended for manual operation and is not the motor-ready Heavy-Duty gate platform. If the project requires a swing-gate operator, use the appropriate Contractor / HD gate configuration and coordinate the operator, support and safety requirements.What is included in the DIY double-gate package?
The current product content identifies pre-cut aluminum frame components, ALU20 horizontal slats, corner/assembly hardware, fasteners and instructions as the core package. Exact hinge, latch and accessory contents should be confirmed with the order rather than assumed.How long does installation take?
The current page states that many DIY users may complete assembly and installation in roughly 2–4 hours. Actual time can be longer depending on wall preparation, measurements, drilling, hardware, alignment and installer experience.Does the aluminum gate rust?
6063-T6 aluminum does not form iron-oxide rust like steel. The architectural powder coating adds exterior surface protection. Routine cleaning is still recommended, especially near salt air.What does AAMA 2604 mean for this gate?
The gate uses an AAMA 2604 architectural powder-coated finish intended for durable exterior color and surface performance. Actual appearance over time still depends on exposure, cleaning and physical wear.Is the aluminum non-combustible?
The product page lists the aluminum substrate as non-combustible, with no normal ignition behavior and zero smoke development for the metal. Complete project compliance should still be confirmed for the applicable local requirements.Can I change the gate size in the field?
The Universal frame family is used across multiple ALU20 gate models, but this SKU is sold as a 12′ × 6′ configuration. Do not assume arbitrary field resizing is acceptable. Confirm any nonstandard opening or modification with Aluglobus before cutting components.Is this suitable for coastal or humid areas?
Yes. Aluminum is well suited to humid and coastal environments because it does not rust like iron-based steel. Regular fresh-water cleaning is recommended where salt deposits can build up.Confirm the 12′ × 6′ wall-to-wall opening and both swing arcs before the kit arrives.
A 12-foot DIY double swing still depends on accurate measurements and clean center alignment.
Send the opening before you cut, drill or assume hardware.
