Two leaves share the opening
The 8-foot overall opening is handled as a coordinated double-swing assembly, so both leaves need consistent geometry and clearance.
Aluglobus fence
ALU 50-60 T&G Woodgrain 8x8 ft. Universal DIY Pedestrian Gate - Double Swing - NO GAP
ALU 50-60 T&G Woodgrain 8x8 ft. Universal DIY Pedestrian Gate - Double Swing - NO GAP
Regular price
$2,275.53 USD
Regular price
Sale price
$2,275.53 USD
Unit price
per
Couldn't load pickup availability
Shipping & Returns
Shipping & Returns
Care Instructions
Care Instructions
Description
The ALU 50-60 T&G Woodgrain 8×8 Universal DIY Pedestrian Gate is a double-swing, wall-to-wall aluminum gate system designed for full privacy without intentional slat gaps. Two framed leaves meet at the center, while interlocking tongue-and-groove aluminum infill creates the continuous wood-look face. The system is intended for capable DIY installers and contractors who want a factory-engineered gate without field welding. Pre-engineered frame components reduce field fabrication and allow assembly with standard installation tools. The Universal DIY frame is designed around common lock, latch, stopper, and wall-to-wall installation requirements. 6063-T6 aluminum and AAMA 2604 architectural powder coating support long-term outdoor performance. Use the video together with the frame, infill, hinge, stopper, lock-side and opening-planning information to understand how the Universal DIY system is assembled and installed. This 8×8 configuration uses two swinging leaves inside one finished opening. The Universal DIY system is intended to be assembled on site without welding, while the surrounding walls or properly prepared side supports establish the installation envelope. Both hinge sides, both swing paths, the center meeting condition, and the selected lock or latch arrangement need to be planned together. Each hinge side needs a suitable, plumb, stable mounting condition. The gate can only stay aligned if both sides remain controlled. Latch, stop, receiver, inactive-leaf restraint, and lock requirements should be decided before final leaf positioning. This Universal DIY format relies on the prepared opening rather than treating freestanding concrete-set posts as the default installation. The interlocking aluminum boards form a continuous privacy face. Perimeter and hardware clearances still remain part of the finished installation. At 8 feet tall, squareness, hinge alignment, grade clearance, wind exposure, and handling should be considered before assembly begins. The Universal DIY approach combines perimeter frame members, lock-ready side geometry, top and bottom framing, corner connections, hinge support, gate stops, and T&G infill into a field-assembled gate package. A full frame controls the gate leaf geometry and provides a defined structure around the aluminum privacy infill. The Universal frame family is designed to accommodate common US-size lock and latch arrangements when the opening is planned correctly. Interlocking aluminum boards remove the intentional reveal found in open-gap slat systems and create a continuous woodgrain face. Mechanical connections let the Universal DIY frame be assembled without welding while keeping the corners controlled and serviceable. Each leaf requires aligned hinge hardware and a suitable support surface so the gate can swing freely without forcing the frame out of square. The closing condition should be coordinated before installation so both leaves meet cleanly and the selected latch or lock works as intended. Instead of leaving a deliberate 3/8-inch or 1/2-inch reveal between slats, the ALU 50-60 T&G profile interlocks from board to board. The result is a more continuous architectural surface with less direct visibility through the gate face. Final privacy still depends on perimeter clearances, hinge gaps, center meeting tolerances, ground clearance, latch hardware, and the surrounding wall or support conditions. The 8×8 Universal DIY double gate should be prepared around a two-leaf frame package sized to the final opening. Frame lengths, infill quantity, hardware quantity and center-closing components should match the final order package. Measure width at multiple heights and confirm the finished height where the gate will actually sit. Confirm material, width, plumb, anchorage and available hinge mounting area on the left side. Document the same information on the opposite side. Double gates need both mounting conditions resolved. Check grade, walls, steps, landscaping, doors, vehicles and other obstructions through the full swing of both leaves. Choose latch, lock, center stop and inactive-leaf restraint before the final center gap is established. If the project cannot be installed wall-to-wall, review the required post or Heavy-Duty support package before purchasing. The Universal DIY double-swing configuration brings the gate frame, T&G privacy infill, wall-to-wall installation strategy, finish system and buying guidance together as one coordinated aluminum gate package. The ALU 50-60 T&G Woodgrain 8×8 Universal DIY Gate combines two field-assembled aluminum gate leaves with interlocking no-gap privacy infill. The Universal frame strategy is intended to simplify on-site assembly while maintaining the full-frame construction needed for a finished pedestrian gate. The gate is manufactured from aluminum rather than wood. The woodgrain finish provides the visual warmth, while the aluminum frame and infill provide the exterior durability, corrosion resistance and low-maintenance behavior. The system uses USA-made 6063-T6 aluminum with architectural powder coating and woodgrain finish options. The T&G infill produces a continuous architectural face without the staining, sealing, swelling or rot associated with natural wood boards. Custom colors may be available. Final dimensions, finish, side-support condition, lock or latch type, and wall-to-wall opening should be confirmed before fabrication or cutting. Because this is an 8-foot-tall double gate, use safe handling practices and additional help during lifting and hanging. If the opening requires freestanding posts, automation, unusual anchorage, or a non-standard structural condition, request project review first. For this 8×8 Universal DIY gate, the final packing list and cut plan control frame lengths, infill quantity, hardware quantity and leaf geometry. Confirm the ordered package before cutting or assembly. The video shows the construction philosophy behind the gate frame, aluminum infill, support details and factory-direct system approach. Use it together with the Universal DIY-specific installation guidance and opening-planning details. A two-leaf configuration creates a centered opening while keeping each individual swing leaf narrower than one full-width panel. No-gap T&G infill gives the entrance a more controlled privacy face while maintaining a warm wood-look finish. Woodgrain aluminum pairs naturally with stucco, stone, concrete, modern siding and coordinated aluminum fencing. The factory-engineered system can be supplied to builders or property owners who want predictable aluminum components and a clean installation path. The structural and infill material is aluminum, not combustible wood. That can be useful on projects intentionally reducing combustible exterior materials while maintaining a warmer architectural appearance. Fire behavior: aluminum is non-combustible and does not burn under normal fire conditions. The product family lists an approximate aluminum melting range of 615 to 655 °C and smoke developed of 0. Zone Zero and code-sensitive projects: material choice alone does not establish compliance. Coatings, hardware, adjacent fencing, walls, vegetation, clearances, attachments and local requirements all matter. Confirm the complete project with the applicable authority or project professional. Maintenance: rinse periodically with water and a mild appropriate cleaner. Avoid harsh abrasives. Inspect hinges, fasteners, stops, lock hardware and alignment as part of normal gate maintenance. Use direct checkout when the opening has been confirmed as a wall-to-wall Universal DIY installation and both hinge-side supports, swing paths, center closure and hardware requirements are already resolved. The final 8×8 packing list, cut plan and project measurements control the installation. Confirm the two-leaf configuration, frame geometry, T&G infill, hinge positions and center-closing hardware before permanent installation. Send the finished opening, both wall or side-support conditions, intended swing directions, center-closing requirement, site photos and project location. Aluglobus can help confirm whether the opening fits the Universal DIY wall-to-wall format or needs a different support package.
Full-Frame Strength
Universal System Compatibility
Long-Lasting Powdercoat
Hinge Support
Premium Aluminum Construction
DIY-Friendly Assembly
An 8×8 woodgrain privacy gate, engineered as a two-leaf Universal DIY aluminum system.
Built for DIY - Installed Cleanly
One System. Broad Compatibility
Engineered for Exterior Durability
See how the Aluglobus gate system comes together.
The key difference is not just size. It is the Universal DIY wall-to-wall installation strategy.
Both side supports matter
The center closure is part of the system
Wall-to-wall changes the planning
T&G eliminates intentional slat gaps
Large size requires accurate setup
The system is designed as a complete framed gate, not fence material with hinges attached.
Universal DIY perimeter frame
Wide side member for common lock hardware
ALU 50-60 T&G privacy boards
Corner brackets and stainless fasteners
Hinge support for each leaf
T-stopper, receiver and latch planning

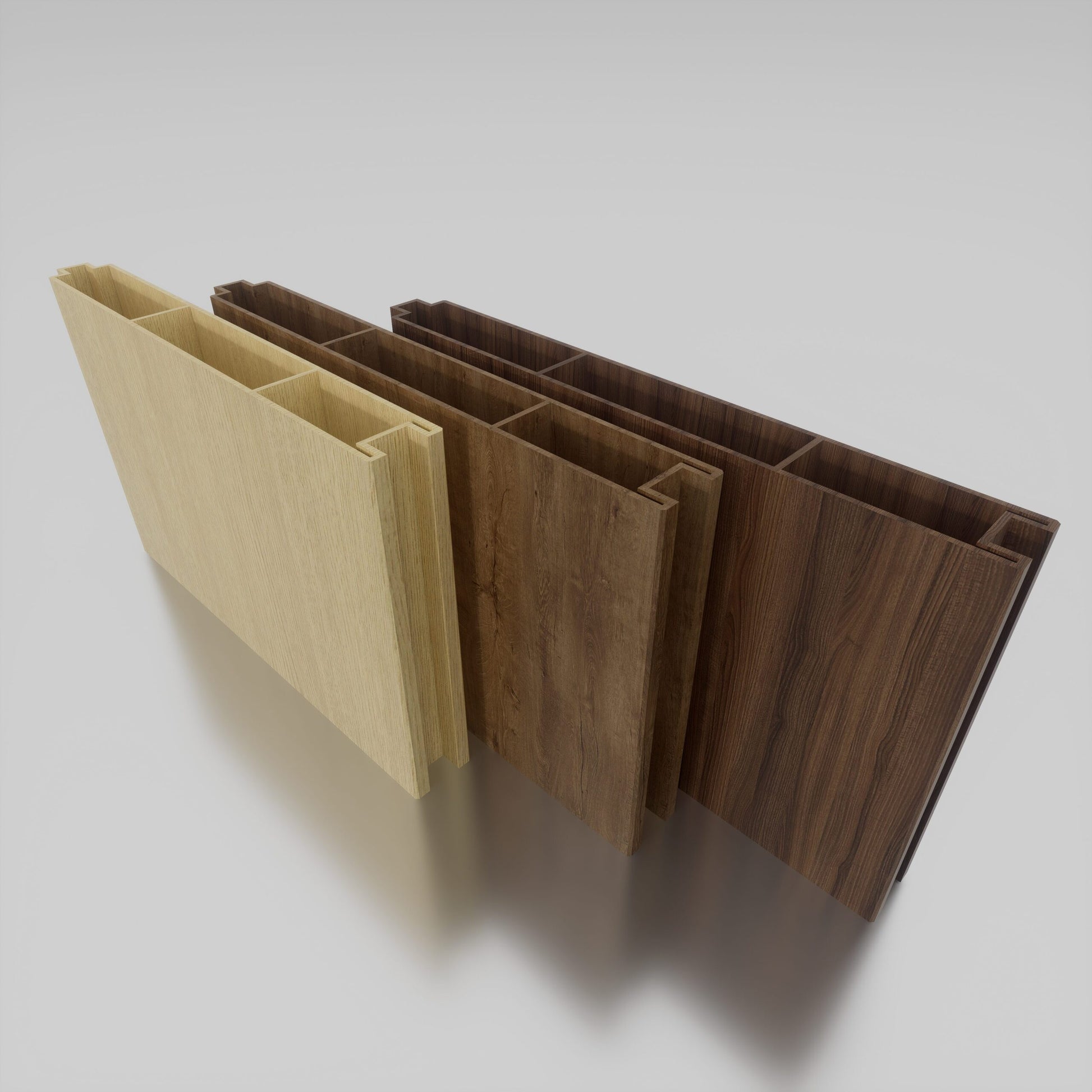

The wood look is visual. The privacy comes from interlocking aluminum.
Two Universal DIY gate leaves, one coordinated 8×8 opening.
Six checks that matter more than the nominal 8×8 label.
Finished opening
Left support
Right support
Swing paths
Center hardware
Support strategy
A factory-direct 8×8 Universal DIY aluminum privacy gate for larger wall-to-wall openings.
Universal DIY aluminum double swing gate
Benefits for homeowners and contractors
Applications
Design, finish and customization
Installation & buying guide
Universal DIY package guidance
Watch how Aluglobus approaches framed aluminum gate construction.
A larger DIY aluminum gate for projects where privacy and a balanced two-leaf entrance are part of the design.
Wide pedestrian entries
Private courtyards
Modern residential projects
Contractor-supplied DIY packages
The appearance of wood, with a non-combustible aluminum substrate.
Do you want to buy?
Build each leaf square, install the T&G infill, then align the two leaves as one opening.
Recommended assembly sequence
Questions to answer before choosing an 8×8 Universal DIY double-swing gate.
Is the woodgrain gate made from real wood?
No. The gate is made from aluminum with a woodgrain architectural finish. The aluminum provides the structural and exterior-performance benefits while the finish creates the wood-look appearance.What does “no gap” mean on the ALU 50-60 T&G system?
The tongue-and-groove boards interlock so there is no intentional reveal between adjacent infill boards. Final privacy around the outside edges and center still depends on installation clearances, hinge gaps, center alignment, ground clearance and hardware.Is this 8×8 gate single swing or double swing?
This 8×8 Universal DIY ALU 50-60 T&G woodgrain gate is configured as a double swing with two leaves meeting at the center.Can I install the Universal DIY gate myself?
The system is designed for capable DIY installers and contractors, using mechanical connections instead of field welding. An 8-foot-tall double gate still requires accurate measurements, safe handling, suitable side supports, proper hinge alignment and careful center setup.Does Universal DIY mean I can install it with freestanding posts anywhere?
No. The Universal DIY system is intended for wall-to-wall installation. If the opening requires concrete-set or freestanding structural posts, request the appropriate support upgrade or Heavy-Duty configuration before ordering.Can this Universal DIY pedestrian gate be motorized?
The Universal DIY pedestrian configuration is intended for manual operation. For motorized or automated gate applications, use a Heavy-Duty gate system designed for the operator loads and project-specific hardware.What should I measure before ordering?
Measure the finished opening width and height, document both side supports, confirm both swing directions and grade clearances, and decide how the leaves will stop, latch and lock at the center. Photos from both sides of the opening are useful for project review.Is the aluminum non-combustible?
Yes. The aluminum substrate is non-combustible. Whether a complete gate and surrounding project meet a specific Zone Zero, defensible-space or local code requirement depends on the full assembly and local rules.Before ordering an 8×8 Universal DIY double gate, prove that the opening is right for the system.
